Pre-calibrated hydrogen sensor module
AG-2-H2-MA2610(D)
FIGARO
Product Description：
1. Product Description
The AG-2-H2-MA2610(D) is an embedded type module equipped with the Figaro’s semiconductor Sensor TGS2610-D00, capable of detecting Hydrogen (H2) in diverse environments. The module has been pre-calibrated before leaving the factory and has good durability, stability, and anti-poisoning. It includes a built-in temperature sensor for data correction via software algorithms to minimize environmental impact on measurement accuracy. It utilizes digital communication through a USART or PWM digital output for gas concentration readings, which allows users to easily and quickly integrate the module into various systems. This makes it suitable for both residential and industrial gas detection applications.
2. Features
? Long life and low cost
? USART or PWM digital output
? pre-calibrated before leaving the factory

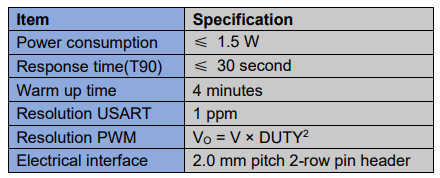

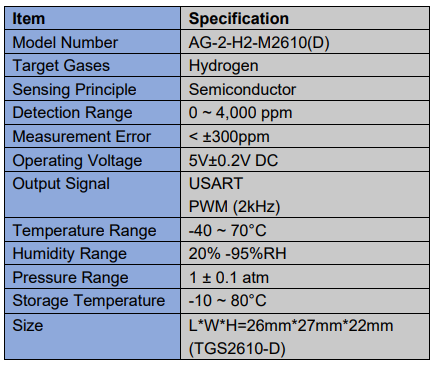

3. Technical Specification
